Job completed for Dalworth Restoration

Completion date: April 9, 2020

Location: Euless, TX

Why did the customer contact us?

Dalworth contacted us for help with getting internet to a building that was across a field with another tennant between them.

Solutions provided:

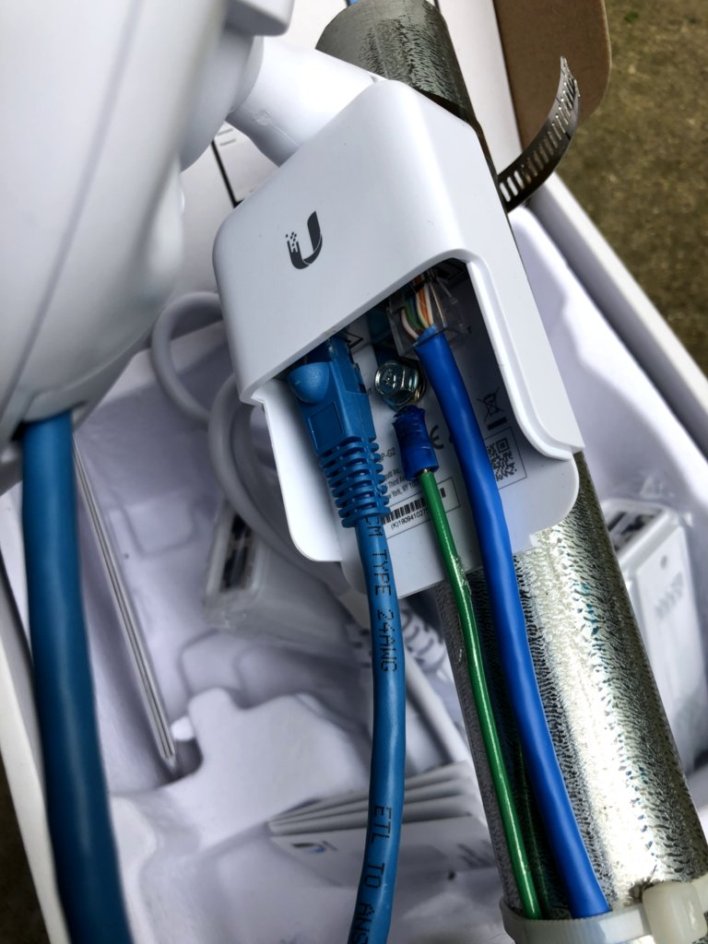

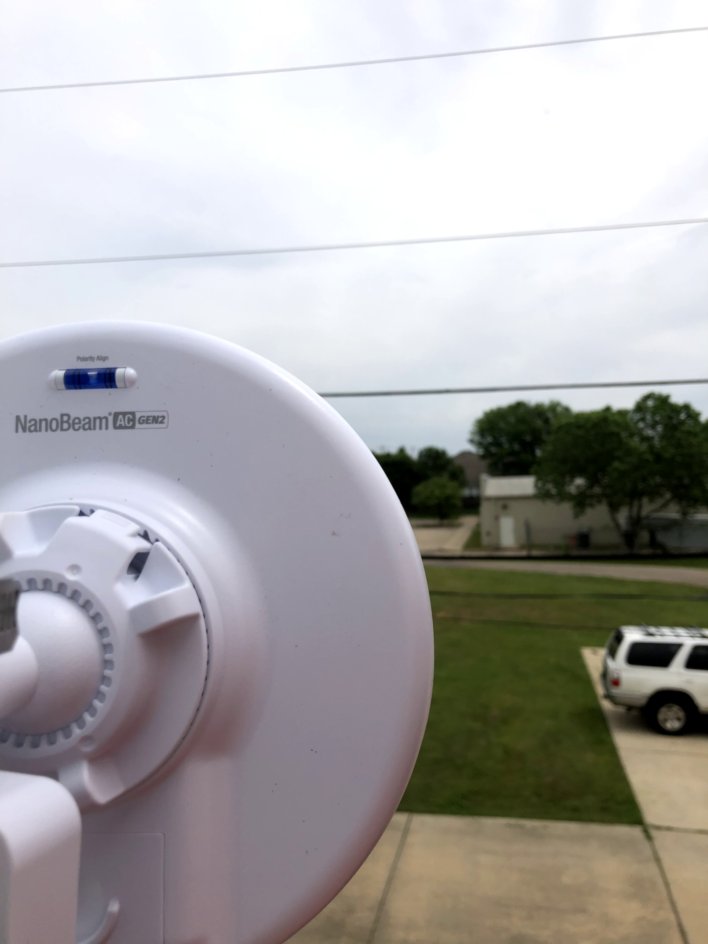

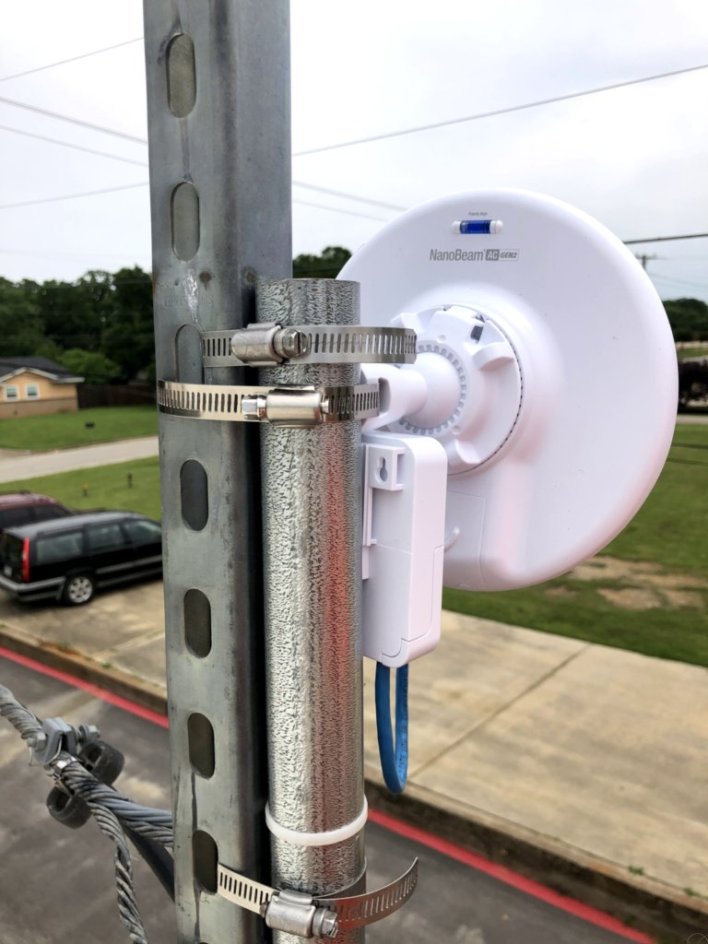

Our solution consisted of two NanoBeam AC Gen 2 Bridges and two Ubiquiti Ethernet Surge protectors. We mounted the Nano Beams on 1.5" pipe and fastened the surge protector with a self-tapping screw to the pipe through a previously drilled pilot hole. We used 14 gauge ground wire with a crimp-on connector to fasten to the ground portion of the surge protector and ran the wire to building ground.

This solution was pretty simple to build in the shop and mount to the customers' building with metal straps. We had the customer install the management software on their pc since they would be managing this PTP application. We tested the connection which allowed us to see our IP security cameras in the remote building.

Team members on this project:

Clint Polley,
