Job completed for 29 Acres

Completion date: July 22, 2022

Location: Crossroads, TX

Why did the customer contact us?

This customer contacted us to help them with some fiber optic cabling between the cottages.

Solutions provided:

We installed OM3 multi-mode fiber to two new cottages to bring internet connectivity as well as a connection to the networked fire panels. The customer was very pleased to add these two new buildings to their existing fiber ring around their campus. We essentially had to cut the existing ring and incorporate two new buildings into the ring by pulling fiber to them and back-feeding the connection from the far building to the return portion of the campus loop. All new fiber was certified and staged for their network administrator to come out and plug in his equipment.

Team members on this project:

Clint Polley, Jose Garcia, Caleb Polley,

Photos & Videos:

29 Acres Cross Roads, TX
Large View Icon
29 Acres Cross Roads, TX

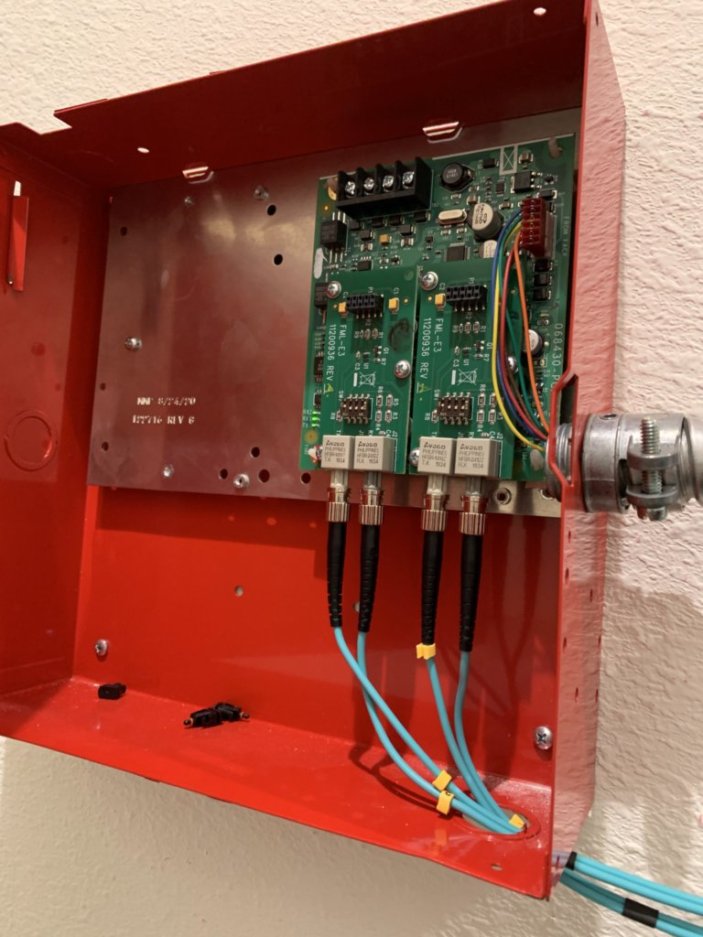

Fiber in Fire Panel
Large View Icon
Fiber in Fire Panel

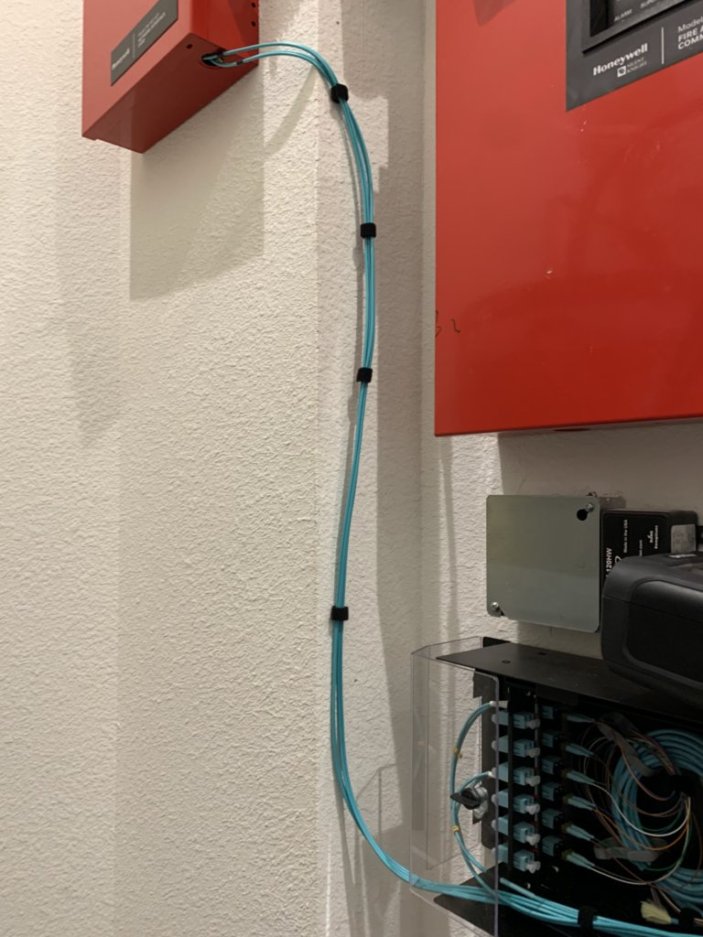

Fiber
Large View Icon
Fiber

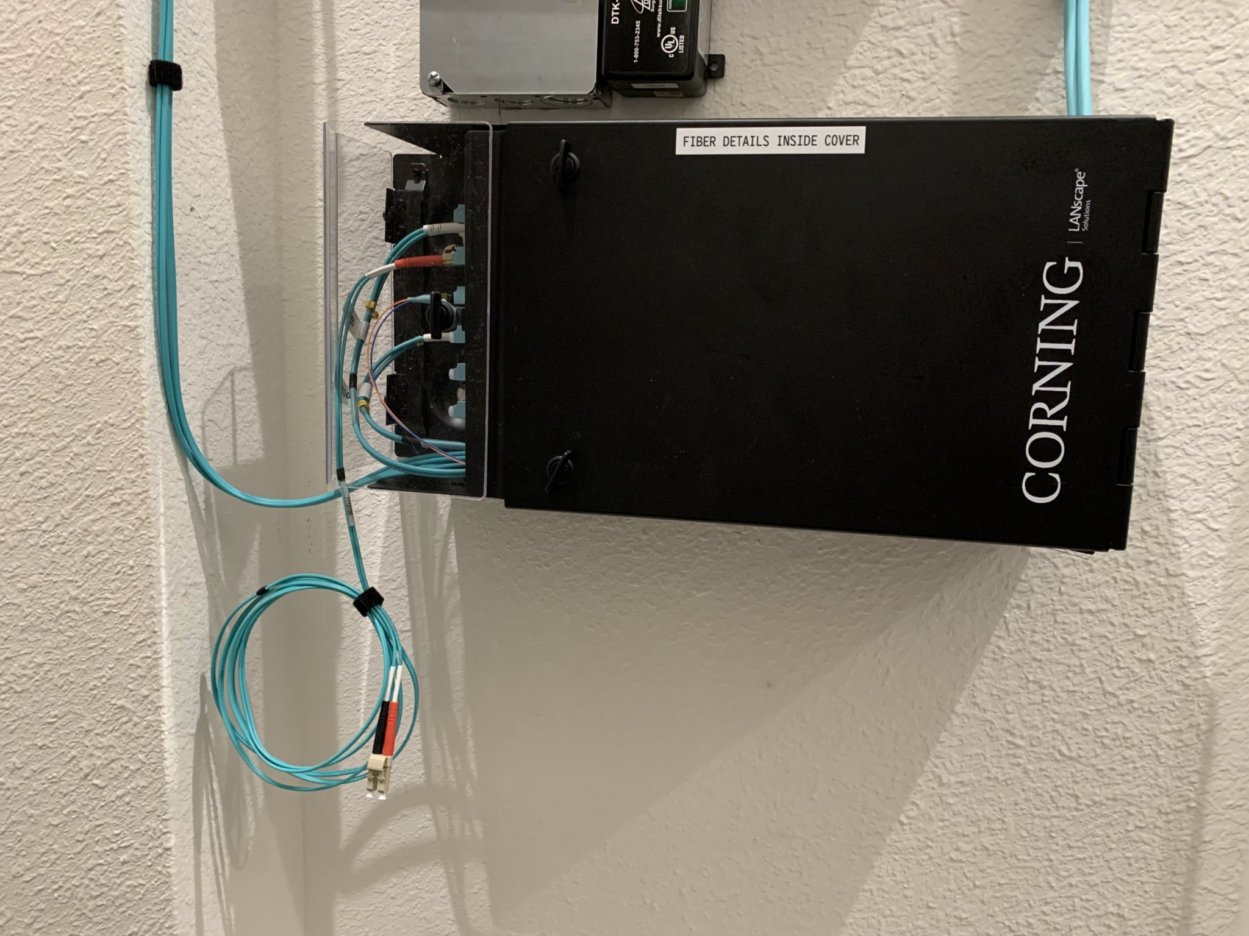

Wall Mount Fiber Panel
Large View Icon
Wall Mount Fiber Panel
