Job completed for Hawaiian Falls

Completion date: April 7, 2022

Location: Garland, TX

Why did the customer contact us?

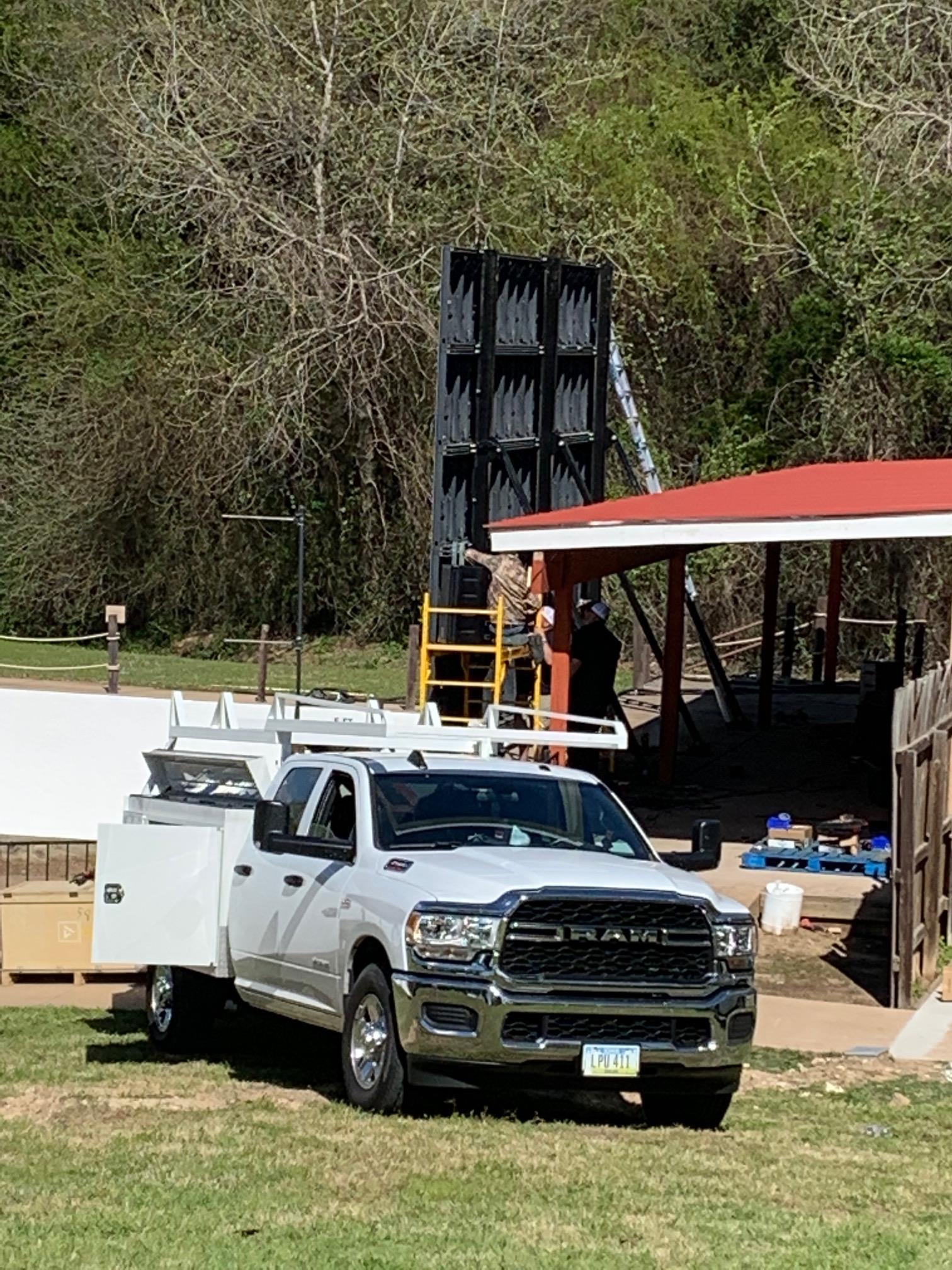

This customer needed fiber optic cabling installed to their large LED display in front of their wave pool.

Solutions provided:

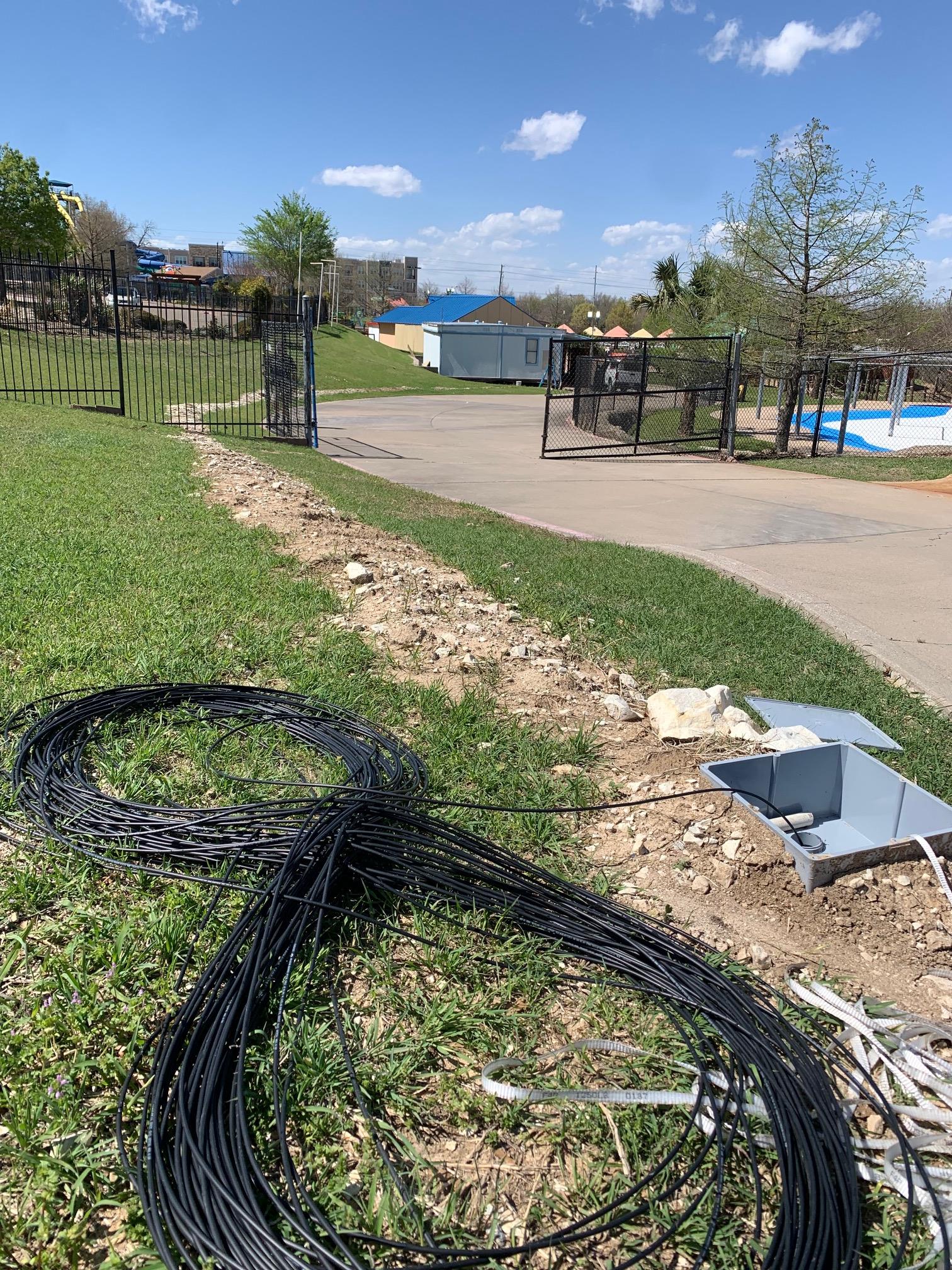

This was the third project that we have teamed up with Insane Impact which specializes in large event LED screen installations.Insane Impact needed a fiber connectionfrom their data cabinet in one building out to their large wave pool LEDdisplay. We ended up installing an outdoor rated 10G multi-mode fiber optic cable approximately 650' underground to their remote network cabinet that connected to their wave pool LED screen. The main challenge was it was an extremely windy day and terminating fiber outside in the wind can be challenging. We tested and certified all six strands and were able to email our project contact the results for their keeping. We used an Owl F7X fiber power meter to document the signal loss for each strand.

Team members on this project:

Clint Polley,
